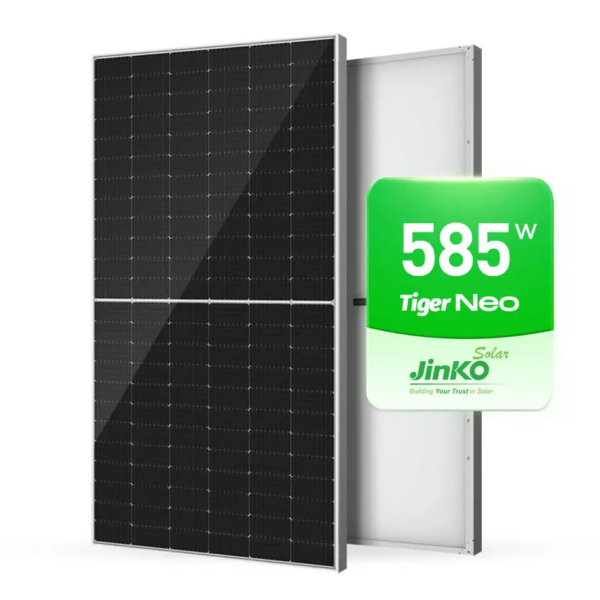

Jinko Solar Tiger NEO JKM585N-72HL4-BDV 585W N-Type TOPCon Bifacial Solar Panel
- Power Output: 585W – High-power N-Type TOPCon bifacial panel for commercial and utility-scale solar systems
- Cell Technology: N-Type TOPCon Bifacial HOT 2.0 + SMBB – Zero LID/LeTID degradation, superior long-term reliability
- Module Efficiency: 22.65% – Industry-leading efficiency for large-format commercial bifacial panels
- Bifacial Dual Glass: Captures additional 5%–25% energy from rear-side reflected light – Ideal for ground-mount and commercial rooftop systems
- Open Circuit Voltage (Voc): 52.7V | Short Circuit Current (Isc): 14.01A
- Voltage at Max Power (Vmp): 44.02V | Current at Max Power (Imp): 13.29A
- Dimensions: 2278 × 1134 × 30 mm | Weight: 31 kg | 144 Half-Cut N-Type Cells
- Temperature Coefficient (Pmax): -0.30%/°C – Superior heat performance vs P-type panels
- Ultra-Low Degradation: Only 0.40% per year | Year 30: ≥87.4% output – Maximum lifetime energy production
- Mechanical Load: 5400 Pa Snow | 2400 Pa Wind | Hail: 35mm at 97km/h
- Max System Voltage: 1500V DC – Compatible with large commercial string inverter configurations
- 12-Year Product Warranty + 30-Year Linear Performance Guarantee
- Certifications: IEC 61215:2021, IEC 61730:2023, ISO 9001, ISO 14001, TÜV – Fully internationally certified
- Description
- Size Guide
- Additional information
Description
Jinko Solar Tiger NEO JKM585N-72HL4-BDV 585W N-Type TOPCon Bifacial Solar Panel
- Power Output: 585W – Jinko Solar’s Tiger NEO 72HL4-BDV delivers outstanding commercial power output from its large-format bifacial dual-glass design, ideal for rooftop commercial and industrial solar systems in Pakistan
- N-Type TOPCon Bifacial Technology: HOT 2.0 (High-density Overlay Technology) + SMBB (Super Multi Busbar) – The combination of N-type silicon, TOPCon passivation, and bifacial glass-glass construction delivers maximum energy from every panel installed
- Zero LID / Zero LeTID: N-type cells completely eliminate Light-Induced Degradation and Light and Elevated Temperature Induced Degradation – Starts at full rated power on Day 1 and stays stronger longer than any P-type equivalent
- Module Efficiency: 22.65% – Among the highest in the 585W commercial bifacial category, generating significantly more energy per square meter of roof or ground area
- Bifacial Rear Energy Gain: Dual glass construction captures reflected light from below – 5% to 25% additional energy yield depending on surface albedo, making each panel equivalent to 615W–730W in optimal conditions
- Electrical Specifications (STC): Pmax: 585W | Voc: 52.7V | Isc: 14.01A | Vmp: 44.02V | Imp: 13.29A | Efficiency: 22.65% | Tolerance: 0/+3%
- Physical Specifications: Dimensions: 2278 × 1134 × 30 mm | Weight: 31 kg | 144 half-cut N-type TOPCon cells | Dual Glass (3.2mm + 2.0mm) | MC4 connector
- Superior Temperature Performance: Temp. Coefficient Pmax: -0.30%/°C – Generates significantly more energy than standard P-type panels (-0.38%/°C) during Pakistan’s extreme summer heat
- Ultra-Low Annual Degradation: Only 0.40% per year – After 30 years the panel still delivers ≥87.4% of rated output, producing approximately 12% more lifetime energy than equivalent P-type panels
- Exceptional Mechanical Durability: Front Load: 5400 Pa | Rear Load: 2400 Pa | Hail: 35mm diameter at 97km/h – Engineered for Pakistan’s monsoon storms and extreme climate conditions
- Salt Mist and Ammonia Resistance: Certified for coastal and agricultural environments – Perfect for Pakistan’s coastal Karachi installations and agricultural solar projects
- Maximum System Voltage: 1500V DC | Max Series Fuse: 30A | IP68 Junction Box – Full compatibility with commercial and utility-scale string inverters
- 12-Year Product Warranty + 30-Year Linear Performance Guarantee – Year 1: ≥98% output | Annual degradation: ≤0.40% | After 30 years: ≥87.4%
- Certifications: IEC 61215:2021, IEC 61730:2023, IEC 61701, IEC 62716, ISO 9001:2015, ISO 14001, TÜV – Highest international quality and safety standards
- Compatible With: All major string and hybrid inverters in Pakistan – Inverex, Solis, Growatt, Huawei, Sungrow, GoodWe
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Weight | 31 kg |
|---|
