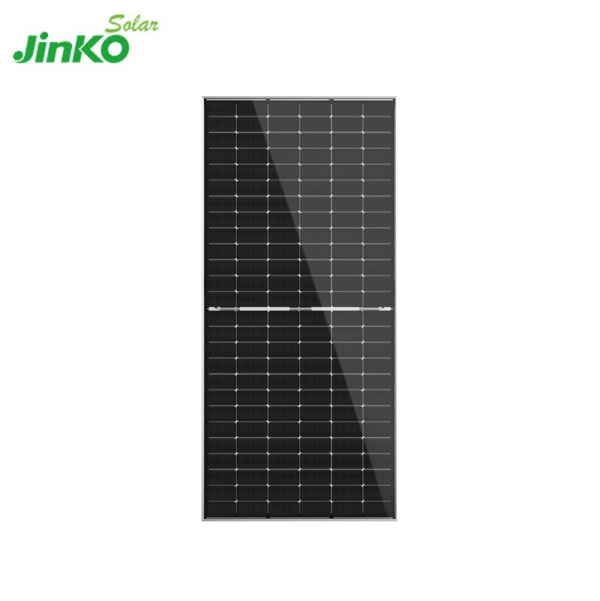

Jinko Solar Tiger NEO N-Type 78HL4-BDV 605W Utility Bifacial Solar Panel
- Power Output: 605W – High-efficiency solar energy generation
- Cell Technology: N-Type TOPCon Bifacial Dual-Glass Utility – Extra-large utility bifacial – Maximum power per racking position for solar farms
- Module Efficiency: 21.64% – Maximum power per square meter
- Open Circuit Voltage (Voc): 55.17V
- Short Circuit Current (Isc): 13.95A
- Dimensions: 2465 × 1134 × 30 mm
- Weight: 34.6 kg
- Product Warranty: 12-Year Product Warranty + 30-Year Linear Performance Guarantee (≤0.4% annual degradation) – Long-term performance guarantee
- Certifications: IEC 61215, IEC 61730, ISO 9001 – International Quality Standards
- Compatible With: All major inverter brands available in Pakistan (Inverex, Solis, Growatt, Huawei, Sungrow)
- Description
- Size Guide
Description
Jinko Solar Tiger NEO N-Type 78HL4-BDV 605W Utility Bifacial Solar Panel
- Power Output: 605W – Reliable high-power solar energy generation for homes and businesses
- Cell Technology: N-Type TOPCon Bifacial Dual-Glass Utility – Extra-large utility bifacial – Maximum power per racking position for solar farms
- Module Efficiency: 21.64% – More electricity from the same roof space
- Open Circuit Voltage (Voc): 55.17V
- Short Circuit Current (Isc): 13.95A
- Voltage at Max Power (Vmp): 45.43V
- Current at Max Power (Imp): 13.32A
- Dimensions: 2465 × 1134 × 30 mm
- Weight: 34.6 kg – Lightweight aluminum frame for easy installation
- Temperature Coefficient (Pmax): -0.30%/°C
- Snow Load: 5400 Pa | Wind Load: 2400 Pa – Engineered for Pakistan’s climate
- Max System Voltage: 1000/1500 VDC
- Product Warranty: 12-Year Product Warranty + 30-Year Linear Performance Guarantee (≤0.4% annual degradation)
- Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001 – Globally certified quality
- Compatible With: Inverex, Solis, Growatt, Huawei, Sungrow, GoodWe, Fronius inverters
- Bifacial Technology: Front + rear energy capture – 5% to 25% additional yield from reflected light
- Dual Glass Construction: 3.2mm + 2.0mm tempered glass – Maximum durability and fire resistance (Class A)
- Annual Degradation: Only 0.4%/year – Outstanding long-term performance
- Ideal For: Ground-mount systems, flat rooftops with white membrane, agrivoltaic installations
