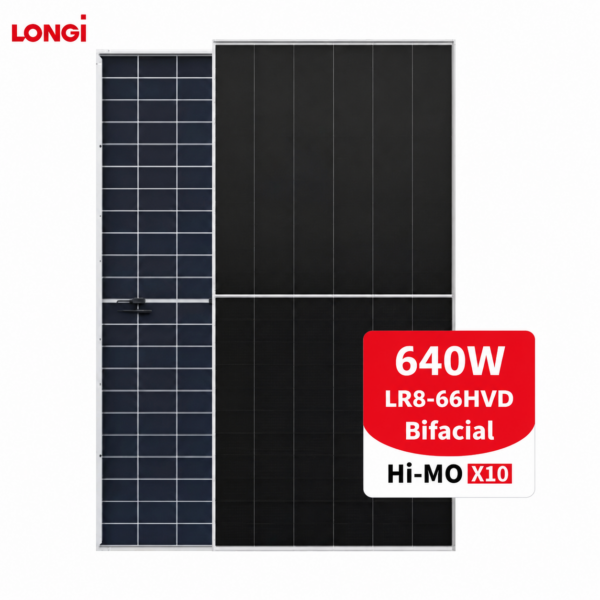

LONGi Hi-MO X10 LR8-66HVD 640W Bifacial N-Type HPBC 2.0 Solar Panel
- Power Output: 640W – Ultra-high power output from LONGi’s latest HPBC 2.0 cell technology
- Cell Technology: N-Type HPBC 2.0 (Hybrid Passivated Back Contact) – LONGi’s proprietary next-generation cell with industry-leading efficiency up to 24.06%
- Module Efficiency: 640W: 23.69% – Among the highest efficiency bifacial panels available in Pakistan
- Bifacial Dual Glass Design: Captures sunlight from both front and rear sides – Up to 15–25% additional energy from reflected light
- Open Circuit Voltage (Voc): 640W: 49.52V
- Short Circuit Current (Isc): 640W: 16.46A
- Dimensions: 2382 × 1134 × 30 mm | Weight: 32.5 kg
- Temperature Coefficient (Pmax): -0.26%/°C – Excellent heat performance for Pakistan’s hot climate
- Low Degradation: Less than 1% Year 1 | Only 0.35% per year thereafter – Maximum 30-year energy yield
- Anti-Dust Patented Frame: Self-cleaning design reduces dust accumulation – Ideal for Pakistan’s dusty environment
- Mechanical Load: 5400 Pa Snow | 2400 Pa Wind – Engineered for Pakistan’s extreme weather
- Product Warranty: 15-Year Product Warranty + 30-Year Linear Performance Guarantee
- Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001 – International quality certified
- Description
- Size Guide
Description
LONGi Hi-MO X10 LR8-66HVD 640W Bifacial N-Type HPBC 2.0 Solar Panel
- Power Output: 640W – LONGi Hi-MO X10 is the world’s most advanced distributed solar panel, delivering ultra-high power from the smallest roof space in Pakistan
- Revolutionary HPBC 2.0 Cell Technology: Hybrid Passivated Back Contact 2.0 – LONGi’s patented innovation moves all electrical contacts to the rear of the cell, eliminating front-side shading and maximizing light absorption for unprecedented efficiency
- Module Efficiency: 640W: 23.69% – Among the highest efficiency commercial solar panels ever produced, generating more electricity per square meter than any standard panel
- Bifacial Dual Glass Design: 3.2mm + 2.0mm tempered glass on both sides – Captures solar energy from both front and rear surfaces, delivering 15%–25% additional yield from reflected light off rooftop surfaces, concrete, and white membranes
- Electrical Specifications (STC):640W → Voc: 49.52V | Vmp: 40.78V | Isc: 16.46A | Imp: 15.70A | Efficiency: 23.69%
- Zero Busbar Front Surface: No visible busbars on the front – Ultra-clean, modern aesthetic appearance on any rooftop combined with maximum light capture
- Patented Anti-Dust Frame Design: Specially engineered frame geometry reduces dust accumulation by up to 40% – Critically important for Pakistan’s dry and dusty climate, maintaining higher output between cleanings
- Exceptional Temperature Performance: Temperature Coefficient Pmax: -0.26%/°C – Significantly lower power loss in Pakistan’s extreme summer heat compared to standard panels (-0.38%/°C)
- Industry-Low Degradation: Year 1: Less than 1% | Year 2–30: Only 0.35% per year – After 30 years, the panel still delivers over 87.4% of rated power
- Physical Specifications: Dimensions: 2382 × 1134 × 30 mm | Weight: 32.5 kg | 132 cells (6×22) | N-Type monocrystalline | Operating Temperature: -40°C to +85°C
- Mechanical Durability: Front Load: 5400 Pa | Rear Load: 2400 Pa | Hail resistance certified – Built to withstand Pakistan’s monsoon storms and extreme weather
- Bifacial Rear Energy Gain: Bifacial factor 75±5% – Under optimal conditions (white roof, elevated mount) equivalent output can exceed 750W+ per panel
- Maximum System Voltage: 1500V DC – Fewer strings needed, lower BOS cost for larger commercial systems
- 15-Year Product Warranty: + 30-Year Linear Performance Guarantee – LONGi’s industry-leading long-term commitment to quality
- Certifications: IEC 61215, IEC 61730, ISO 9001:2015, ISO 14001 – Globally certified for quality and safety
- About LONGi: LONGi is the world’s largest solar module manufacturer and holds multiple world records for solar cell efficiency. The Hi-MO X10 is the flagship distributed product for homeowners who demand the absolute best performance from their solar investment
